| Technical Specifications | Unit | YMC-3018 | YMC-3022 | YMC-4022 | YMC-3025 | |
| X/Y/Z Axis Travel | mm | 3000/1800/1000 | 3000/2200/1000 (1200) | 4000/2200/1000 (1200) | 3000/2500/1000 (1200) | |
| Worktable Size | mm | 3000×1600 | 3200×2000 | 4200×2000 | 3200×2200 | |
| Max. Worktable Load | kg | 9000 | 10000 | 12000 | 12000 | |
| Spindle Nose to Worktable Distance | mm | 200-1200 | 200-1200 | 200-1200 | 200-1200 | |
| Distance Between Two Columns | mm | 1800 | 2200 | 2200 | 2500 | |
| Spindle Taper | / | BT50/φ190 | BT50/φ190 | BT50/φ190 | BT50/φ190 | |
| Spindle Speed | rpm | 6000 | 6000 | 6000 | 6000 | |
| Spindle Power | kW | 15/18,5 | 22/26 | 22/26 | 22/26 | |
| G00 Rapid Traverse X/Y/Z | mm/min | 10000/15000/ 10000 | 10000/15000/ 10000 | 10000/15000/ 10000 | 10000/15000/ 10000 | |
| G01 Cutting Feed Rate | mm/min | 1-8000 | 1-8000 | 1-8000 | 1-8000 | |
| Machine Weight | kg | 26000 | 30000 | 34000 | 35000 | |
| Coolant Tank Capacity | L | 500 | 500 | 500 | 500 | |
| Lubrication Oil Tank Capacity | L | 4 | 4 | 4 | 4 | |
| Power Requirement | kVA | 35 | 35 | 45 | 45 | |
| Air Pressure Requirement | kg/cm² | 5-8 | 5-8 | 5-8 | 5-8 | |
| Tool Magazine Type | / | Disc type / Chain type | Disc type / Chain type | Disc type / Chain type | Disc type / Chain type | |
| Tool Magazine Specification | / | BT50 | BT50 | BT50 | BT50 | |
| Tool Magazine Capacity | / | 24/32(40) | 24/32(40) | 24/32(40) | 24/32(40) | |
| Max. Tool Size (Diameter / Length) | mm | φ125/40 | φ125/400 | φ125/400 | φ125/400 | |
| Max. Tool Weight | kg | 18 | 18 | 18 | 18 | |
| Positioning Accuracy | mm | 0,008/300 | 0,008/300 | 0,008/300 | 0,008/300 | |
| Repeat Positioning Accuracy | mm | 0,005/300 | 0,005/300 | 0,005/300 | 0,005/300 | |
| Machine Dimensions | mm | 8400*3400*3600 | 8400*3800*3800 | 10600*3800*3800 | 8400*4400*3800 | |
| Min. Tool Change Time (TT) | s | 2.9 | 2.9 | 2.9 | 2.9 |
Get expert advice, personalized quotes, and tailored solutions to boost your production efficiency.

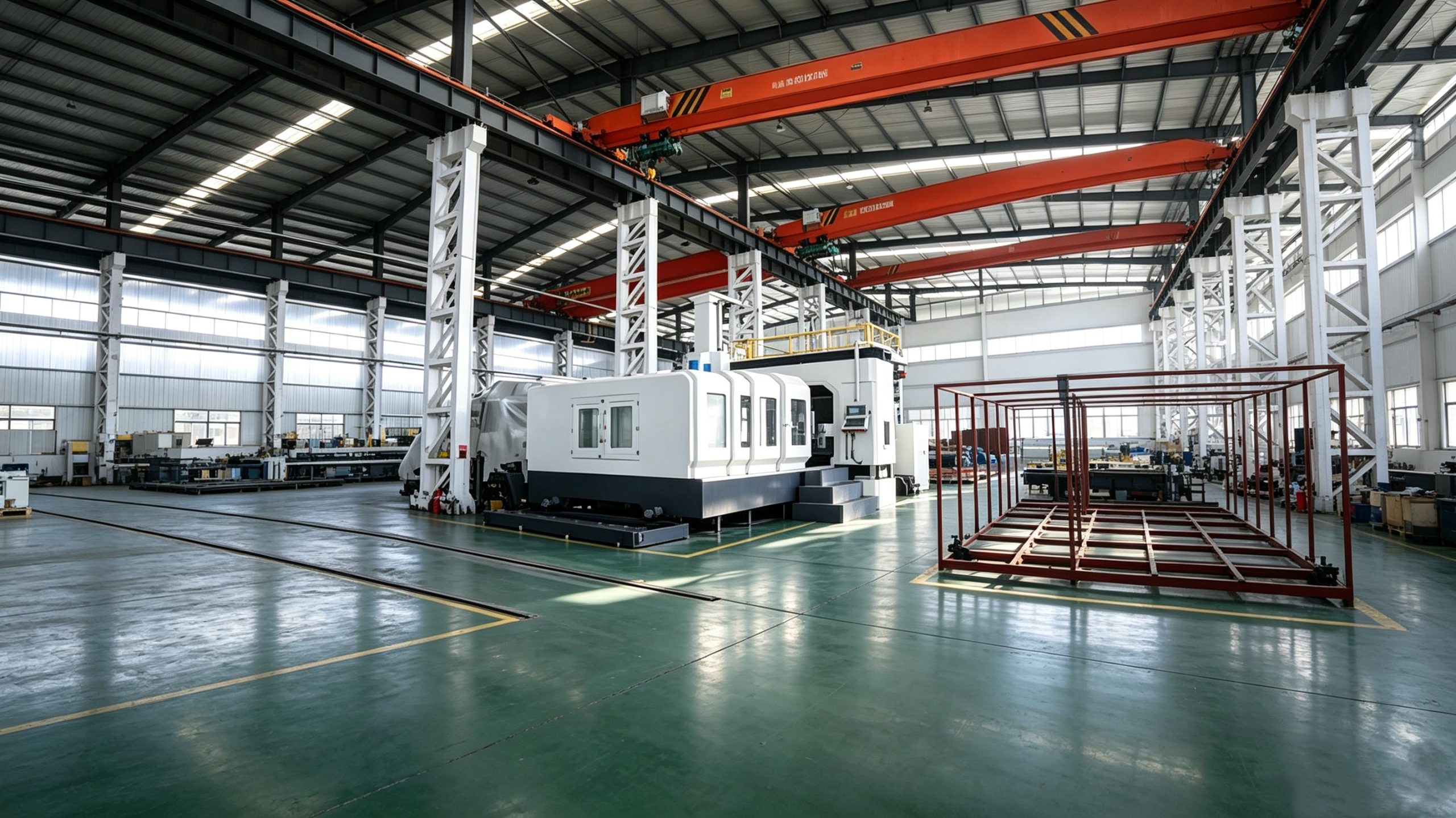

We operate advanced production lines with strict quality control, ensuring stable performance for every machine.
