2026 A3015 Laser Cutter with single-platform design, offering fast, accurate, and efficient sheet metal cutting for industrial applications.

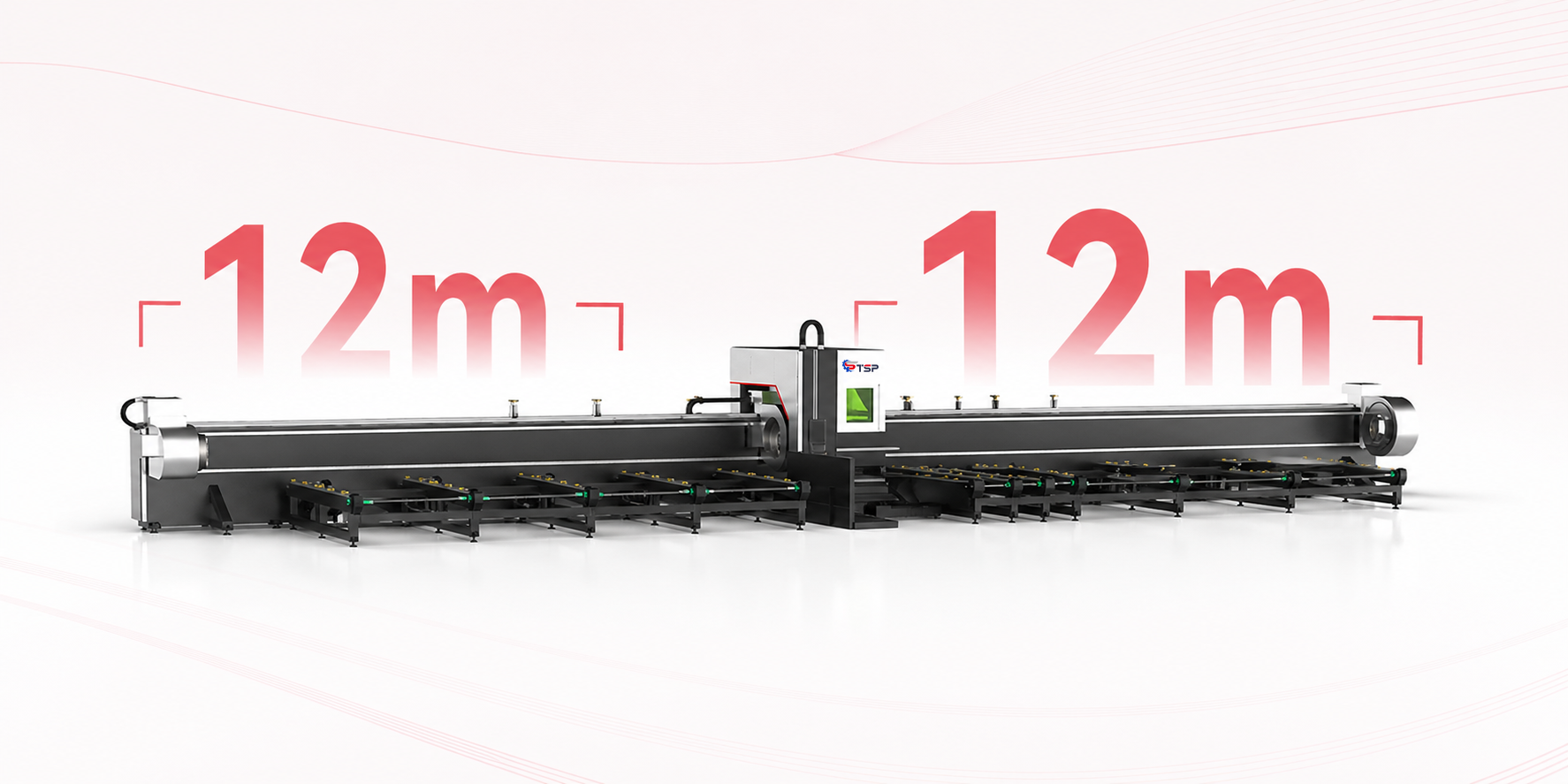

Capable of integrated loading, cutting and unloading for heavy-duty tubes.It handles single heavy tubes up to 2000 kg and long tubes with a length of 12 meters, delivering powerful overall processing performance

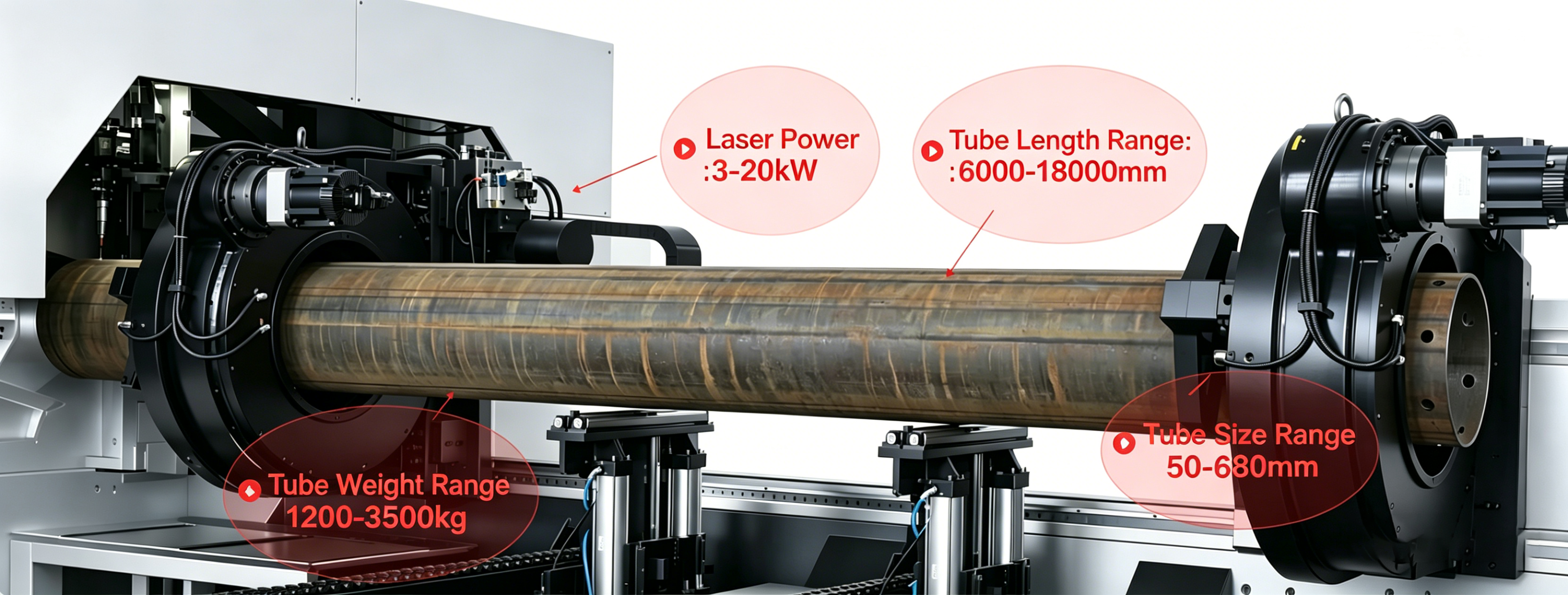

Equipped with 500 heavy-duty pneumatic chucks, this machine processes round tubes from 50 mm to 500 mm in diameter and square tubes ranging from 50×50 mm to 350×350 mm.The flexible four-chuck system realizes genuine zero-tailing cutting for less material waste.

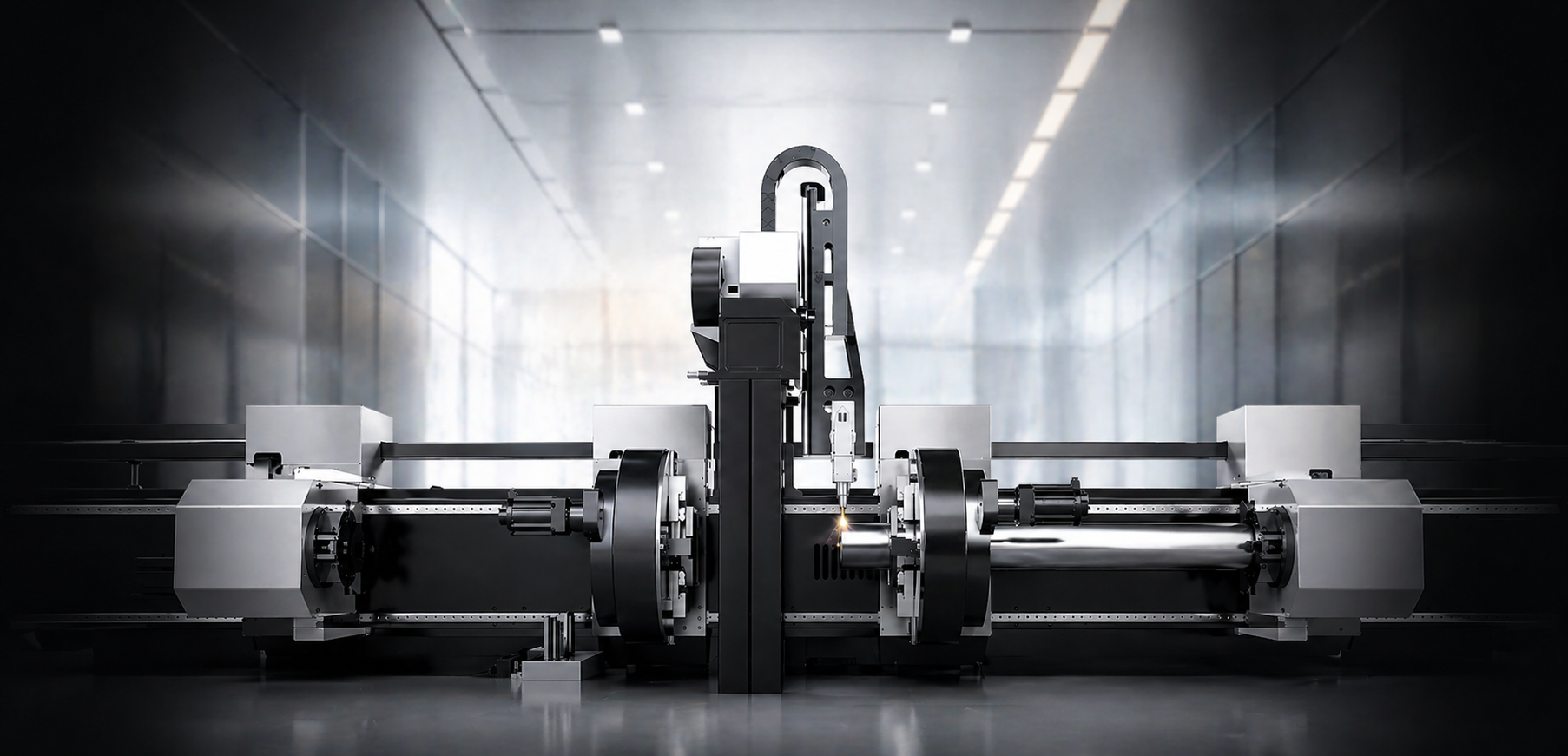

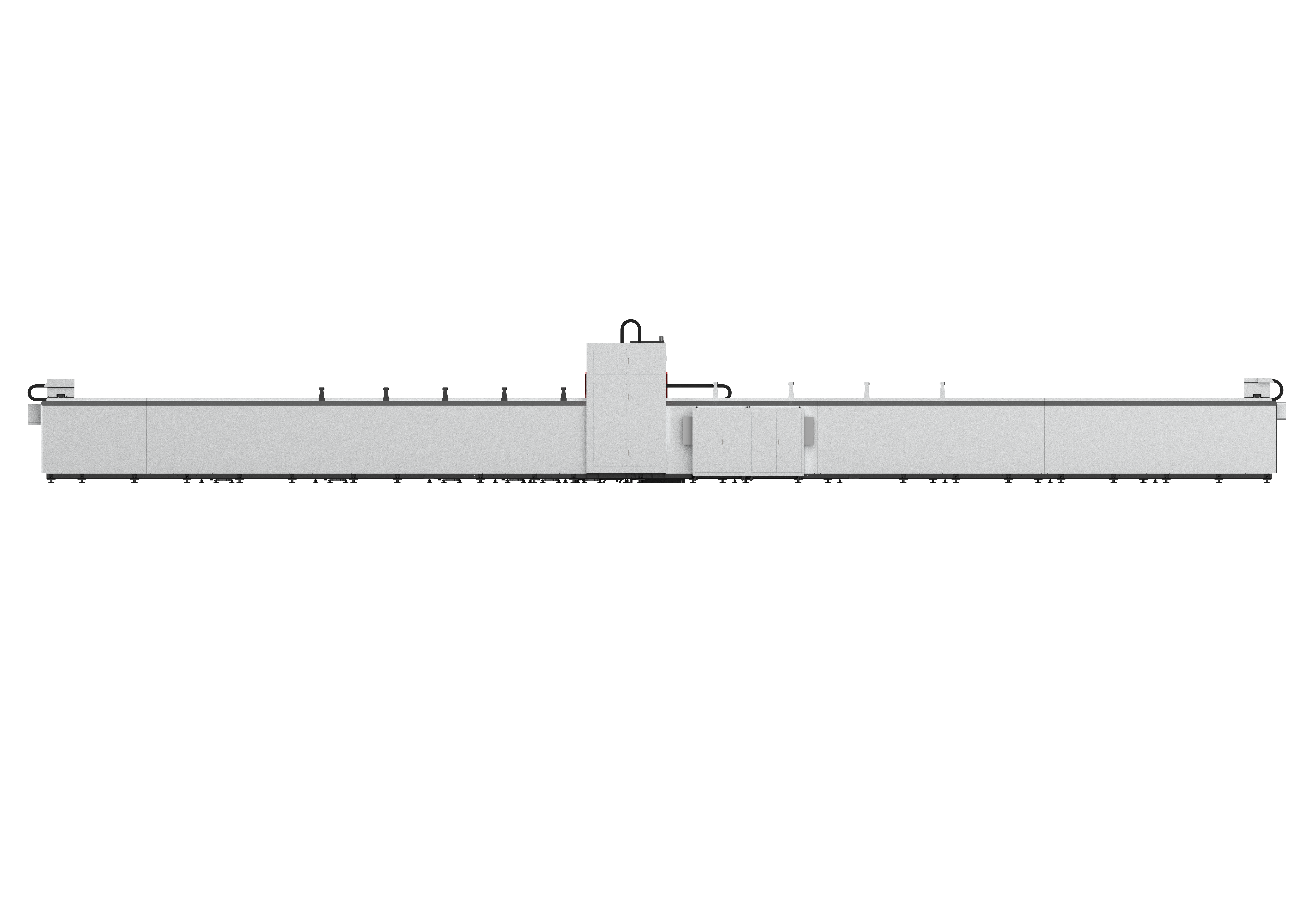

Equipped with a four-chuck structure, this machine is tailor-made for heavy-duty and large-diameter pipe cutting, delivering high-precision processing and high-volume production capacity. It is widely applied in construction, engineering machinery, shipbuilding and other core industries
Bevel Cutting (Optional)
Compatible with nesting software to generate dedicated bevel cutting drawings for tubular workpieces. It supports multiple bevel forms and effectively simplifies subsequent welding procedures

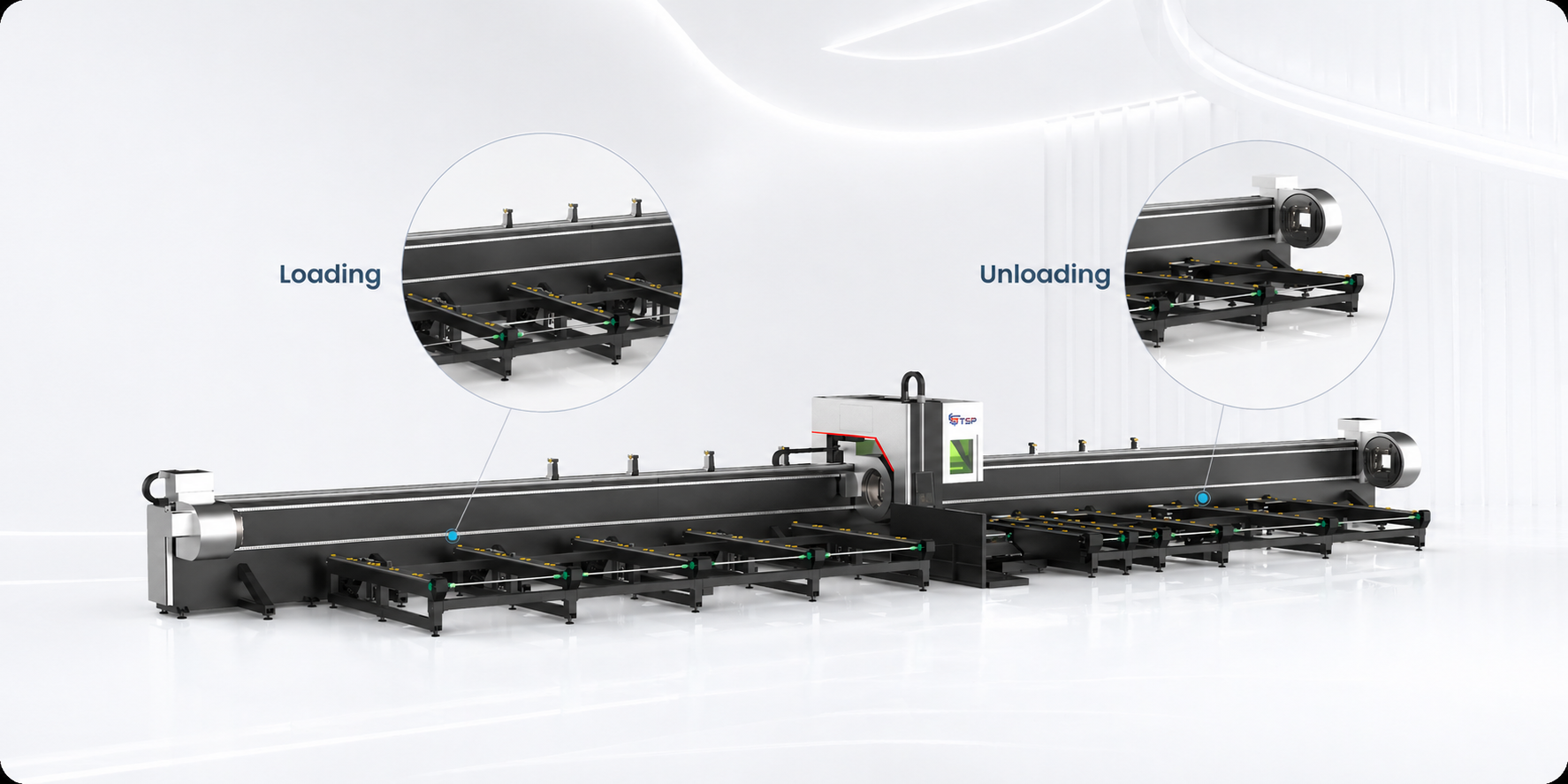

The fully automatic loading and unloading system minimizes manual operation, greatly boosting production efficiency.It ensures stable material feeding, lowers material waste, streamlines production workflows, and enables non-stop, high-efficiency continuous operation.

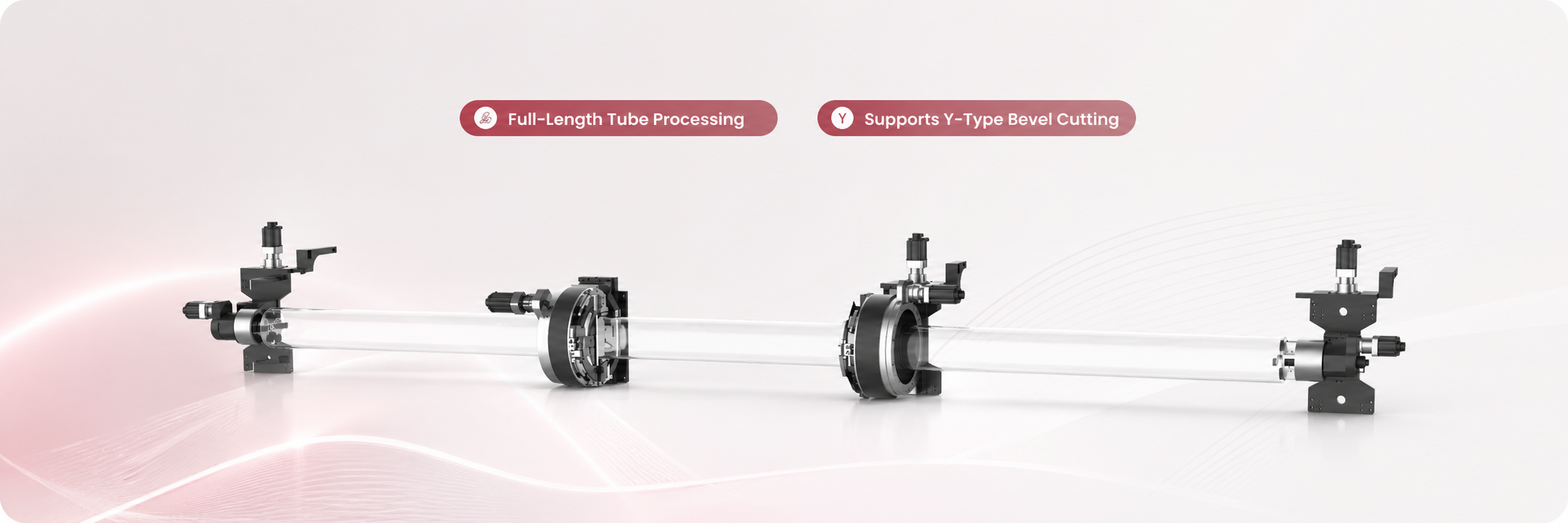

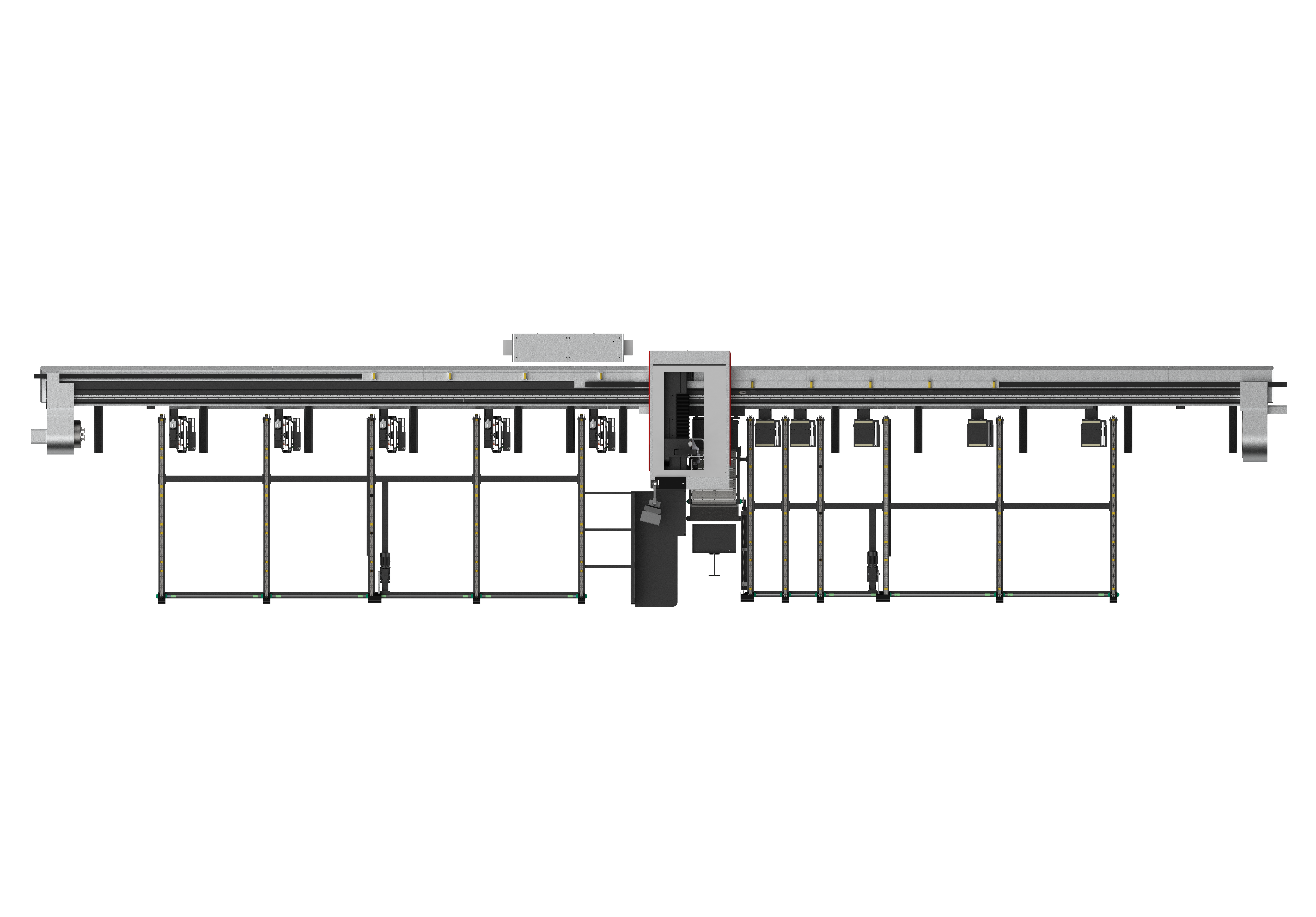

Adopting a high-precision four-chuck design, it is perfectly optimized for full-length tube automatic loading and unloading. With enhanced load-bearing capacity and firm, stable clamping, it supports Y-type bevel cutting and delivers accurate, consistent cutting results.
| Model | T12035 | T12050 | T12056 | T12065 | T15056 |
| Laser Power (kW) | 6-20KW | 6-20KW | 6-20KW | 6-20KW | 6-20KW |
| Max. Length of Tube (mm) | 12000 | 12000 | 12000 | 12000 | 15000 |
| Scope of Tube Size (mm) | Φ50-360 □50*50~360*360 | Φ50-500 □50*50~500*500 | Φ50-560 □50*50~400*400 | Φ50-640 □50*50~640*640 | Φ50-560 □50*50~400*400 |
| Max. Weight of Tube (kg) | 1200 | 2000 | 1800 | 3000 | 1800 |
| X/Y-axis Positioning Accuracy (mm) | ±0.1/1000 | ±0.1/1000 | ±0.1/1000 | ±0.1/1000 | ±0.1/1000 |
| X/Y-axis Repositioning Accuracy (mm) | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Max. No-load Speed (m/min) | 60 | 40 | 30 | 30 | 30 |
| Max. Rotating Speed of Chucks (r/min) | 60 | 40 | 30 | 30 | 30 |
| Overall Dimensions (L*W*H, mm) | 28500*6500*4500 | 29000*7200*4200 | 29000*7200*4200 | 29000*7200*4200 | 36000*7200*4200 |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) | ||||
