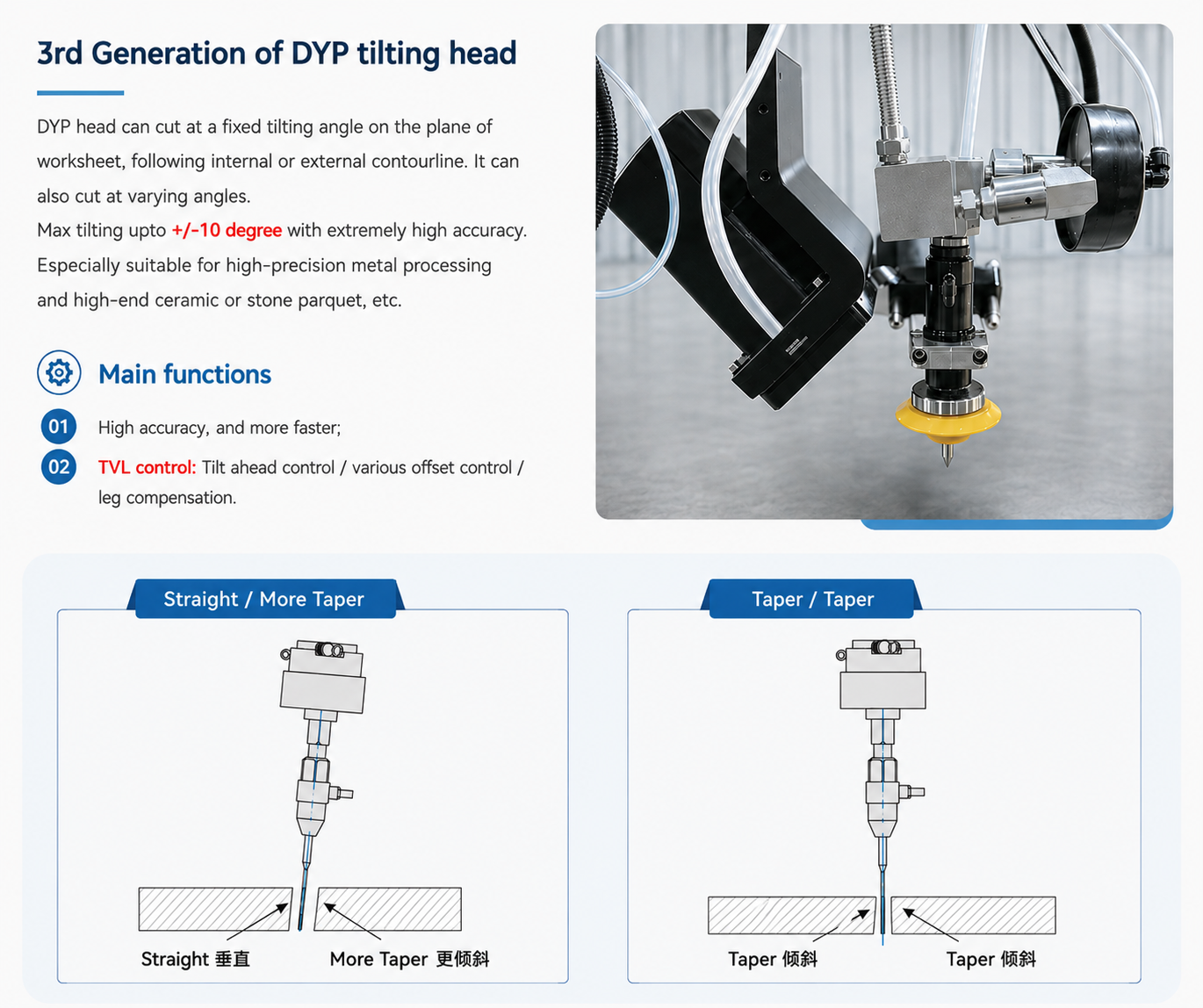

DYP ±10° Dynamic Tilting Cutting Head for Precision Waterjet Cutting

The DYP ±10° Dynamic Tilting Cutting Head is designed for high-precision waterjet cutting applications, delivering excellent performance in metal, stone, and porcelain tile processing.

Featuring advanced dynamic angle compensation technology, the DYP cutting head provides accurate vertical compensation and taper cutting control within ±10°. This ensures improved cutting accuracy, consistent edge quality, and enhanced processing efficiency for demanding industrial applications

*The TSP DV 5X (±10°) Dynamic 5-Axis Waterjet Cutting Head delivers similar functional performance to a traditional 5-axis 3D tilting cutting head while adopting a more simplified and optimized mechanical structure. It provides excellent cutting capability with lower system complexity and cost, making it an ideal solution for high-quality ceramic, marble pattern processing, anti-tilt compensation, and precision vertical cutting of metal materials.

*Unlike conventional cutting methods, the DV 5X dynamic cutting head does not rotate around the center surface of the workpiece. Instead, the tilting movement is performed around the cutting head rod, which means the nozzle position and cutting height automatically adjust according to the swing angle during operation.

*With simultaneous interpolation and linkage of the X, Y, and Z axes, the system achieves real-time motion compensation. The programming process remains similar to standard 2D cutting, making operation more efficient and user-friendly.

*The system provides up to ±10° cutting angle compensation, effectively correcting angular deviations and ensuring high vertical cutting accuracy without compromising cutting speed. It functions as an advanced chamfering solution, improving edge quality while maintaining stable processing performance.

*The TSP DV 5X system is equipped with high-precision servo drive technology, featuring a compact structure, fast response, and smooth motion control. The optimized swing mechanism reduces cutting surface waviness and improves overall machining quality, while achieving reliable angle compensation and precision cutting performance.

*TSP is committed to providing efficient, stable, and precise waterjet cutting solutions, helping customers achieve higher-quality processing with greater flexibility.
