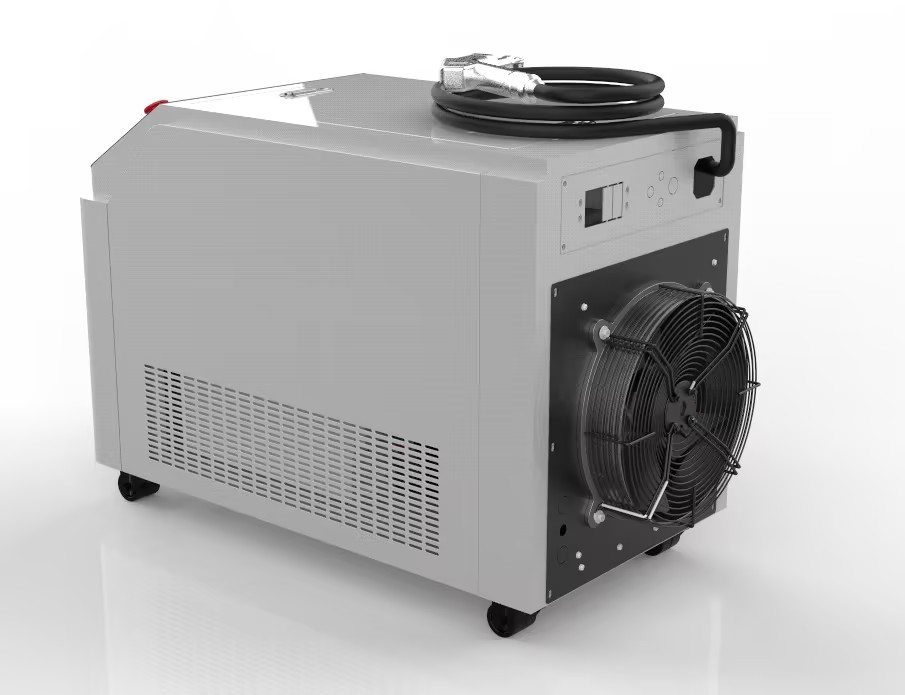

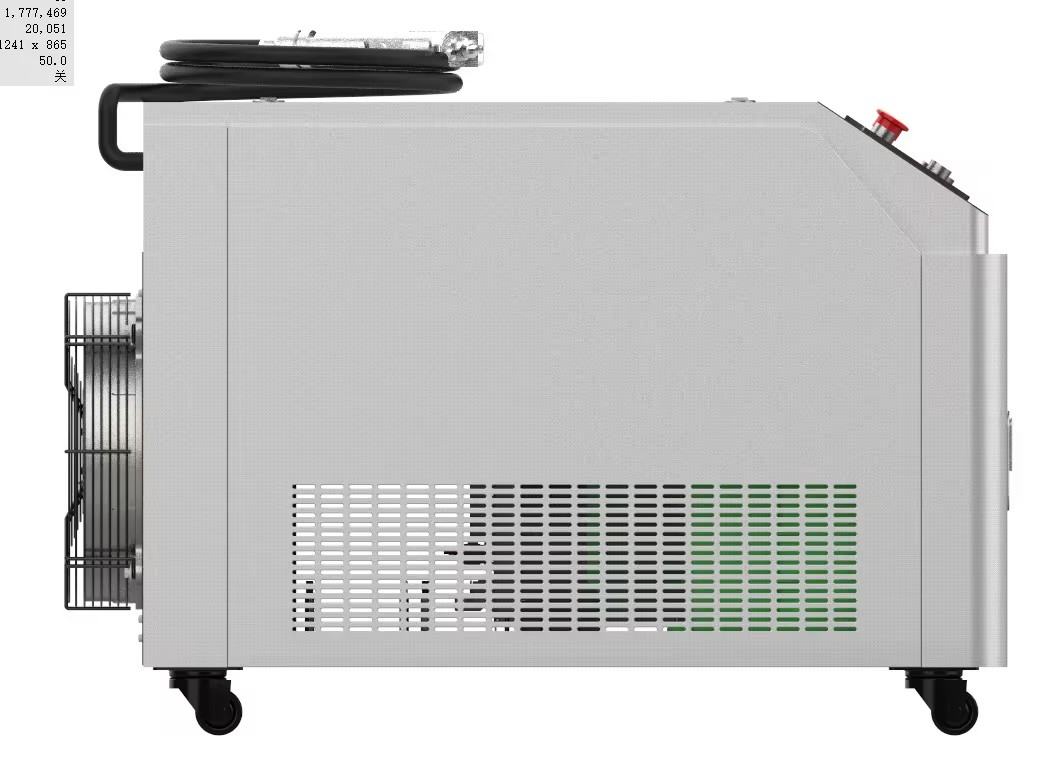

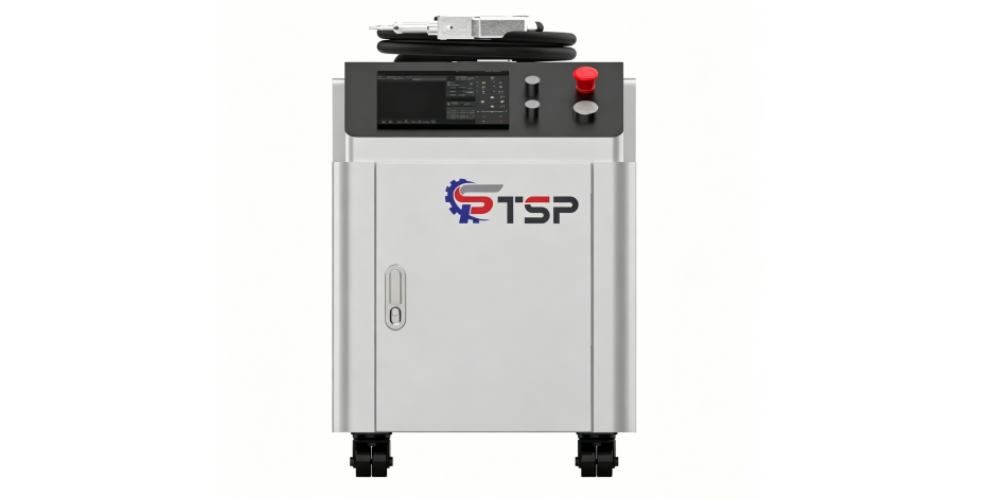

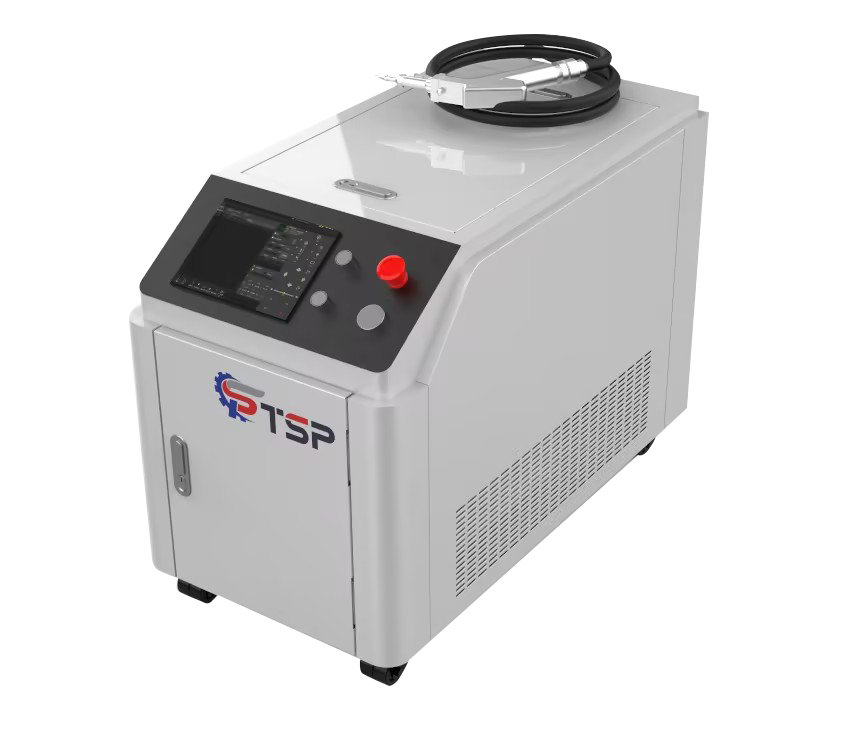

HJ 3-in-1 Handheld Laser Welding Machine integrates laser welding, cleaning, and cutting functions. Available in 1000W–3000W, delivering fast, precise processing for stainless steel, aluminum, and metal fabrication.
Featured by high performance, stability and smart interconnection, this premium 4‑in‑1 system is designed for mid‑ to high‑end manufacturers who need superior weld quality and high consistency among workpieces.
Machine Features:
1. The super-powered laser welding, cleaning and cutting three-in-one system is our latest three-in-one integrated system that supports handheld laser welding, laser cleaning, and laser cutting at the same time. The working mode can be switched freely according to different application scenarios, providing diversified solutions for users’ different application requirements.
2. The product covers welding heads/cleaning heads and self-developed control systems, and is equipped with multiple safety alarms and active safety power and light cut settings. It is developed on the basis of the hand-held welding heads that our company has mass-produced, and has the characteristics of high reliability and strong stability.
3. The product can be adapted to various brands of fiber lasers, and the optical and water-cooled design is optimized so that the laser head can work stably for a long time under 2000W.
Due to high energy density and low heat input, it can weld stainless steel, carbon steel, AL and other metals with high-strength, nice-pleasing weld seams that face minimal deformation.

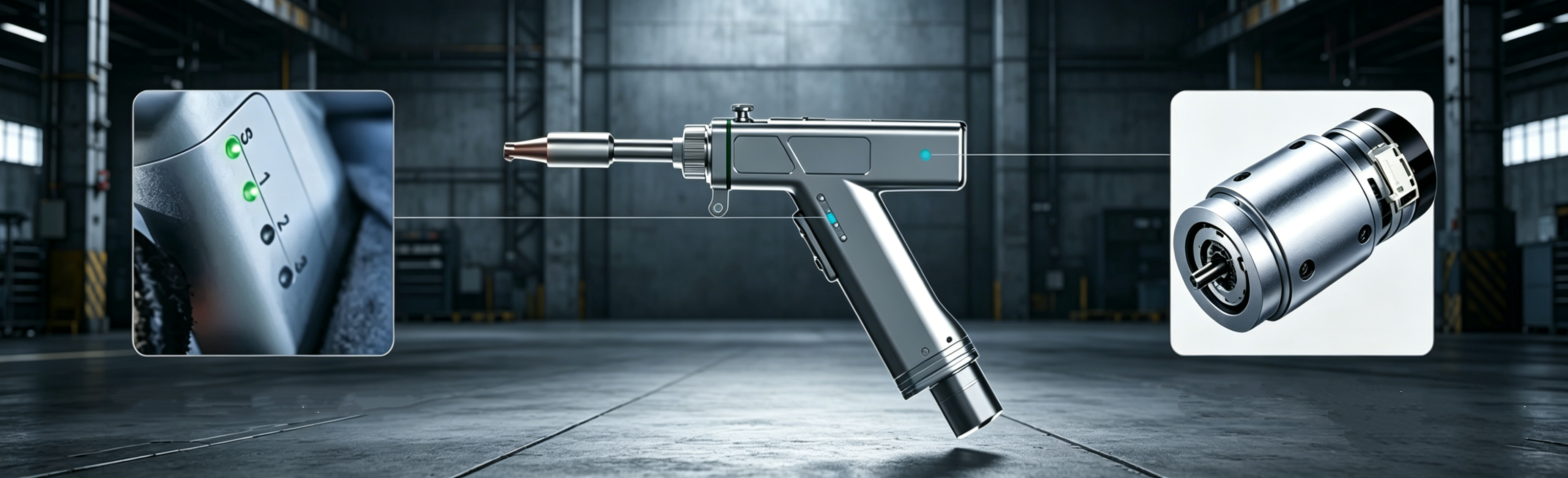

The torch minimizes user fatigue even during extended working hours. The integrated 4-in-1 system, combined with a precision digital servo motor drive and reinforced leadwire, ensures outstanding anti-jamming capability and consistent, stable performance.
| Model | HJ-1500 | HJ-2000 | HJ-3000 |
| Laser Power (kW) | 1.5 | 2 | 3 |
| Laser Wavelength (nm) | 1080±10 | 1080±10 | 1080±10 |
| Thickness of Welding Sheet (mm) | ≤4 | ≤5 | ≤7 |
| Diameter of Filler Wire (mm) | 0.8-1.6 (standard) | 0.8-1.6 (standard) | 0.8-2 (standard) |
| Weight of Welding Gun (kg) | ≤0.75 | ≤0.75 | ≤0.75 |
| Length of Welding Gun Line | 10m | 10m | 10m |
| Net Weight of Machine (kg) | 220 | 220 | 265 |
| Power Supply | Three-phase 380V, 50Hz/60Hz (custom-made) | ||
