Integrated Waterjet Cutting Machine for Food and Abrasive Cutting Applications
Integrated waterjet cutting systems are mainly designed for two major application fields: food cutting and traditional abrasive waterjet cutting.
The food-grade integrated waterjet cutting machine is specially developed for industries that require clean, precise, and hygienic cutting processes. It is widely used in bakeries, chocolate production facilities, slaughterhouses, supermarkets, and food processing industries for cutting cakes, chocolate, meat, and other food products.
With high-pressure waterjet technology, the system delivers accurate cutting performance while maintaining product quality, minimizing material waste, and meeting the strict requirements of modern food processing applications.

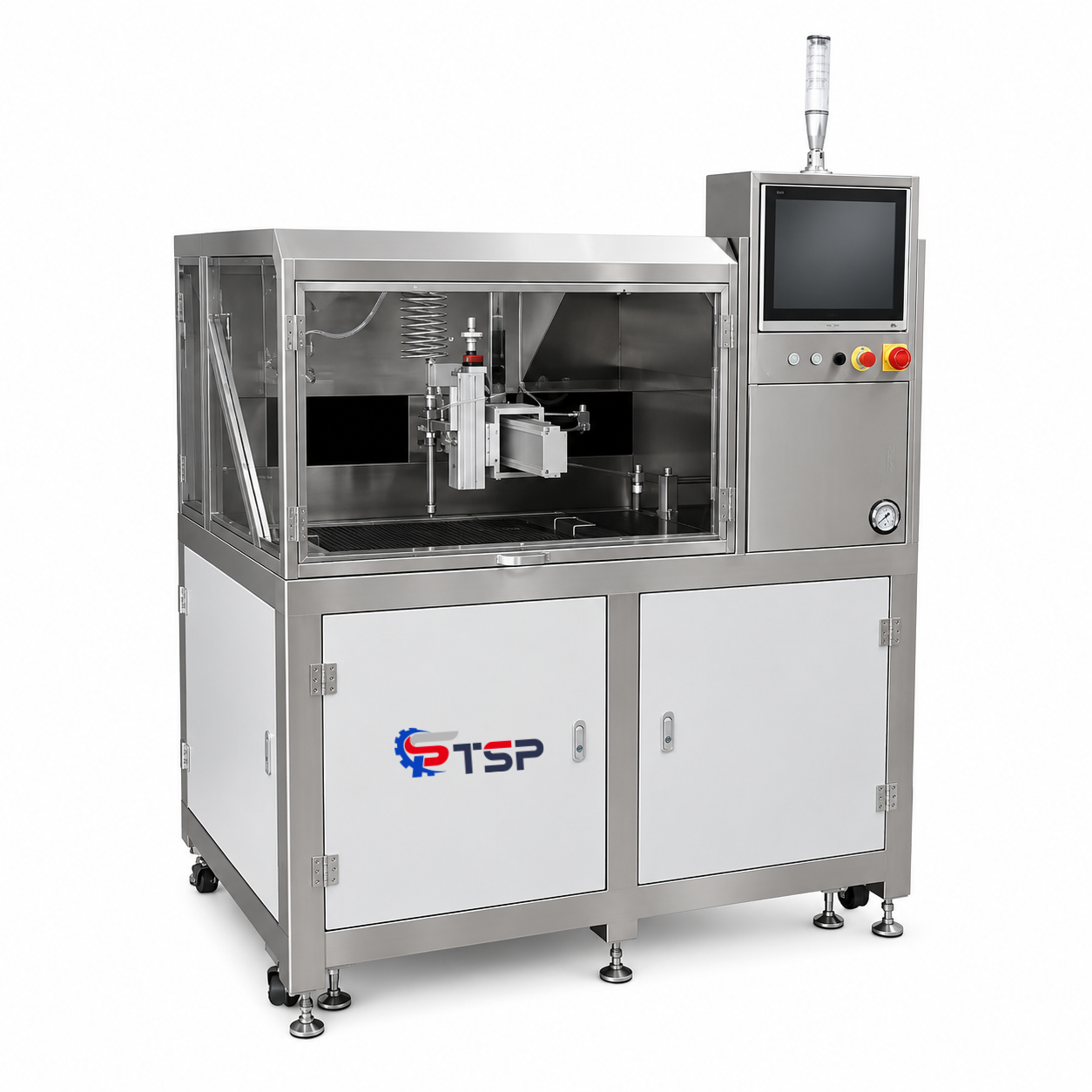

Integrated Food Grade Waterjet Cutting Machine – Key Features & Technical Specifications
The integrated waterjet cutting machine is specially designed for precision food processing and clean cutting applications. It combines a high-pressure waterjet system, cutting platform, and control unit into one compact solution, providing excellent cutting accuracy, hygiene performance, and easy operation.

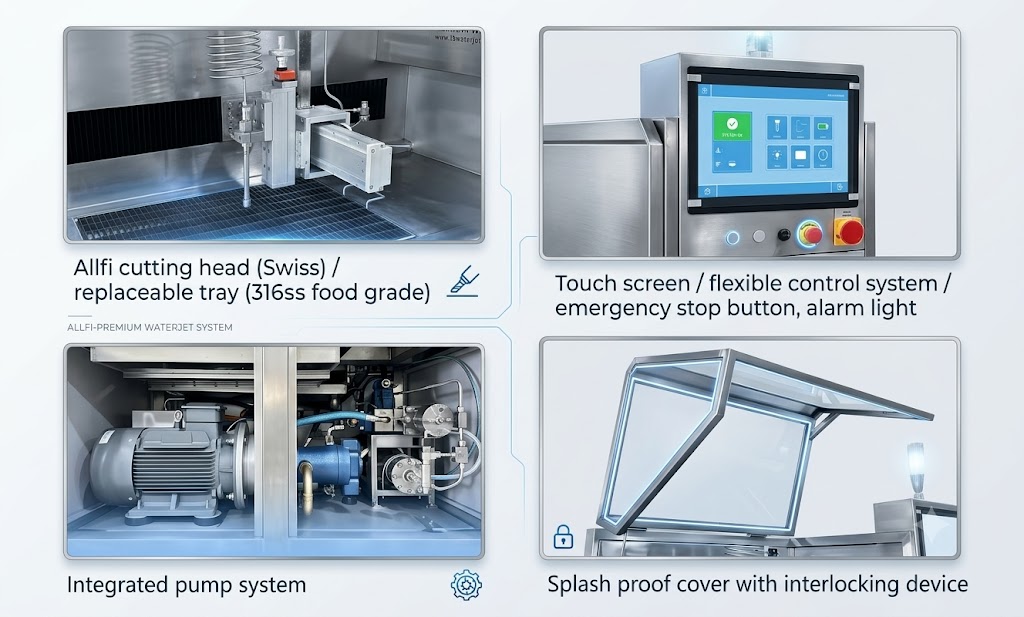

Key Features
Food-Grade Water Supply System
The machine uses purified water processed through an RO filtration system, ensuring the cutting water meets food-grade requirements and supports safe food processing applications.
316 Stainless Steel Food Contact Components
All parts that directly contact food are manufactured from premium 316 stainless steel, offering excellent corrosion resistance and compliance with strict hygiene standards. The stainless steel cutting tray is removable and replaceable for convenient maintenance and cleaning.
Safety Protection with Interlock System
The cutting chamber is equipped with a safety interlocking device. When the protective cover is opened, the machine automatically stops and disconnects power to ensure operator safety. The system is designed according to ISO and CE safety requirements.
Easy Cleaning and Hygienic Design
An integrated drainage structure and cleaning channel are built into the machine, allowing quick internal cleaning and preventing residue accumulation, making it suitable for food industry applications.
Compact Integrated Structure & Flexible Installation
With built-in pump and cutting table integration, the machine does not require complicated on-site assembly. Simply connect water, electricity, and compressed air to start operation. Equipped with mobile casters, it can be easily moved and positioned according to production needs.
Smart CNC Control System
The machine features a user-friendly control interface with integrated CAD/CAM/Nesting functions. It supports automatic path generation, material cutting database management, and customized cutting of irregular shapes.
High Precision Waterjet Cutting Head
The cutting head adopts the Swiss Allfi cutting system with high-quality diamond or ruby orifice options. It provides a narrow cutting kerf, stable cutting performance, and excellent vertical cutting results.
A water collection cup is installed on the X-axis to effectively reduce water backflow and minimize water mist during operation.
Technical Specifications
Machine Type:
Gantry type or cantilever type available
Working Area (X/Y Axis):
Standard model: 600 × 400 mm
Customized sizes available upon request
Z Axis Movement:
Manual adjustment ±100 mm
Orifice Options:
Diamond / Ruby orifice
Diameter: 0.10 – 0.15 mm
Cutting Speed:
3000 – 5000 mm/min
Power Options:
5 – 30 kW (depending on configuration)
Water Flow Rate:
Based on selected high-pressure pump configuration
The integrated food-grade waterjet cutting machine provides a reliable solution for bakeries, chocolate processing, meat cutting, supermarkets, and other industries requiring precise, hygienic, and efficient cutting technology.

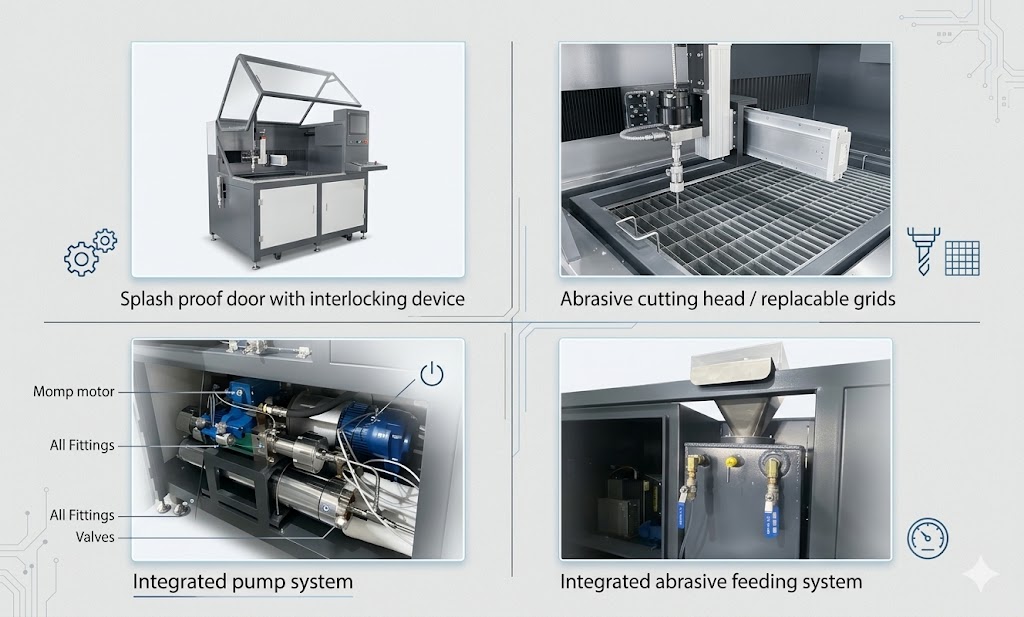

In addition to food-grade cutting applications, the integrated waterjet cutting machine is also available with an abrasive cutting system for processing a wide range of industrial materials, including stainless steel, aluminum, metal sheets, stone, and other hard materials.
Durable Machine Structure
The entire machine frame is constructed with a robust steel structure and finished with an anti-corrosion coating, providing excellent durability and long-term stability in industrial environments.
Replaceable Cutting Platform Design
The cutting table uses a replaceable grid system, allowing quick replacement of worn parts and reducing future maintenance costs.
Integrated High-Pressure Pump System
The high-pressure pump is integrated into the machine layout to save installation space and simplify operation. For routine maintenance, the pump unit can be separated easily, making inspection and servicing more convenient.
All-in-One Abrasive Waterjet System
The abrasive delivery system, water filtration unit, and high-pressure pumping system are fully integrated into the machine. This compact design eliminates complicated installation procedures, reduces setup time, and provides a more efficient cutting solution.
Advanced CNC Control System
The intelligent control system includes built-in CAD/CAM/Nesting functions, an internal material cutting database, and support for customized cutting paths, including irregular shapes and complex designs.
Clean and Safe Working Environment
The machine is equipped with drainage outlets and splash-resistant enclosure doors, helping prevent water overflow and maintain a clean, organized production area.
The integrated abrasive waterjet cutting machine combines precision, flexibility, and easy operation, making it an ideal solution for metal fabrication, stone processing, and various industrial cutting applications.

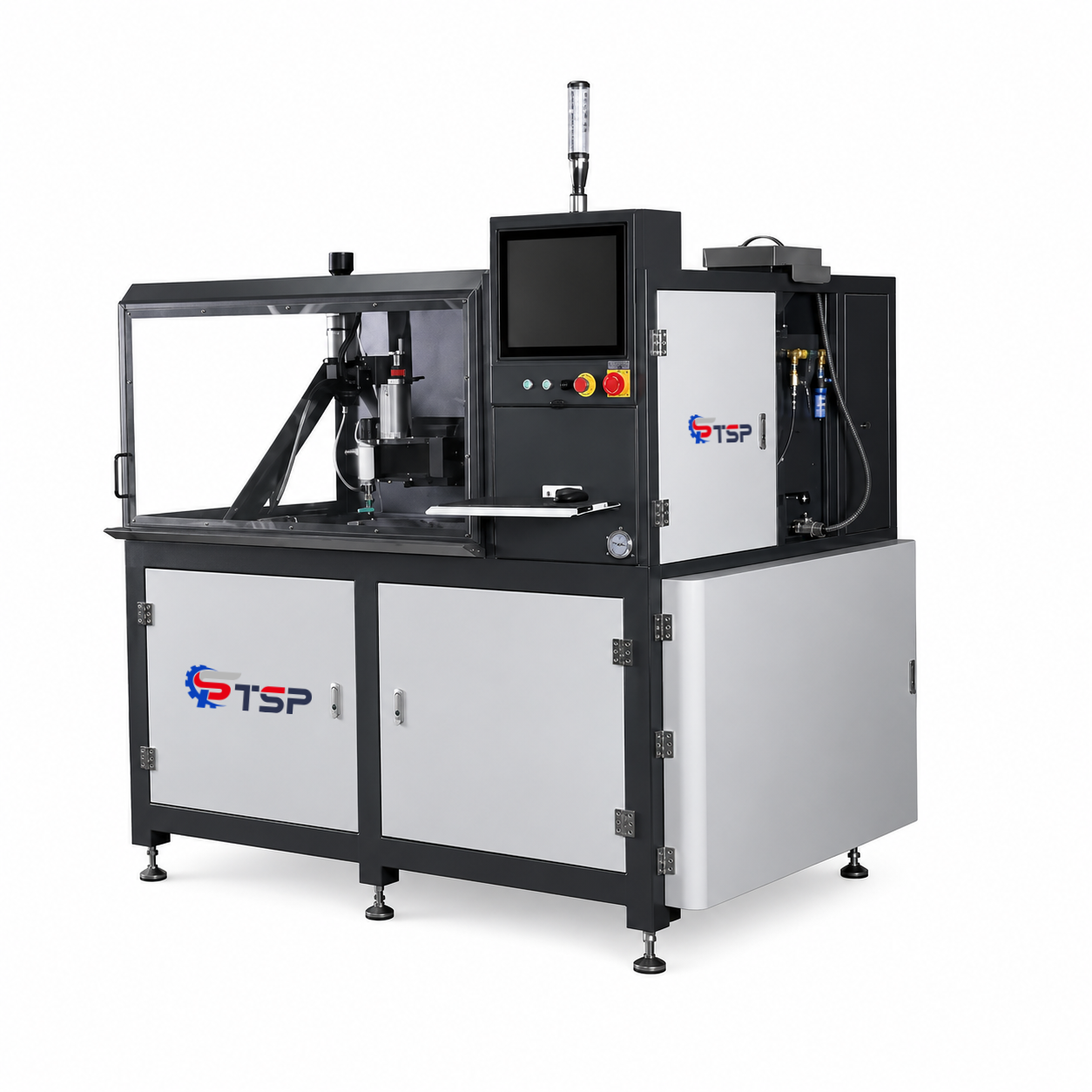

The integrated abrasive waterjet cutting machine is available in both gantry and cantilever configurations, providing flexible solutions for different industrial cutting requirements. The system combines high-pressure cutting technology with a compact integrated structure, delivering accurate and efficient processing performance.
Machine Configuration
Available models: Gantry type / Cantilever type
Working Area (X/Y Axis)
Standard size: 600 × 900 mm
Customized working dimensions available according to customer requirements
Z Axis Adjustment
Manual lifting system
Travel range: ±100 mm
Cutting Orifice Options
Ruby orifice available
Diameter range: 0.20 – 0.33 mm
Cutting Performance
Example: Cutting a 10 mm iron plate
Configuration:
Maximum cutting speed: up to 160 mm/min
Power Options
Available power range: 15 – 37 kW
Water Flow Rate
Determined by the selected high-pressure pump and motor configuration
The integrated abrasive waterjet system provides reliable cutting performance for metal, stone, and other hard materials, combining precision, flexibility, and easy operation for industrial applications.
